Product R&D Background:

Modern HVAC systems, data centers, and rail transportation ventilation systems extensively use EC permanent magnet fans. These fans incorporate built-in rectifier-inverter drives that act as nonlinear loads, with DC-link energy storage capacitance significantly smaller than that of traditional variable frequency drives. During operation, they generate substantial 5th, 7th, 11th, and 13th harmonic currents. If standard VFD harmonic filters are used, resonance between the grid, filter, and EC drives can easily occur, leading to systemic issues such as DC-link over voltage, fan speed reduction, drive protection trips, false triggering of building automation systems, and overheating of power distribution equipment.

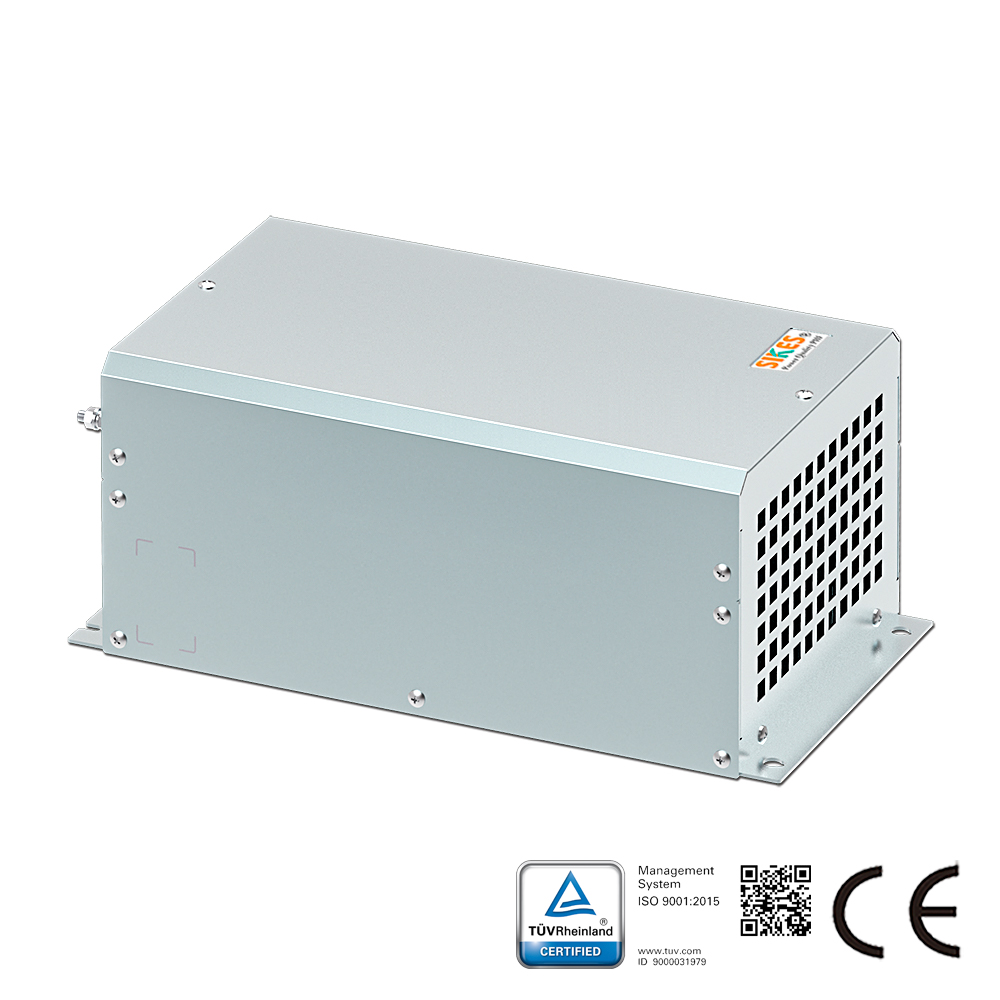

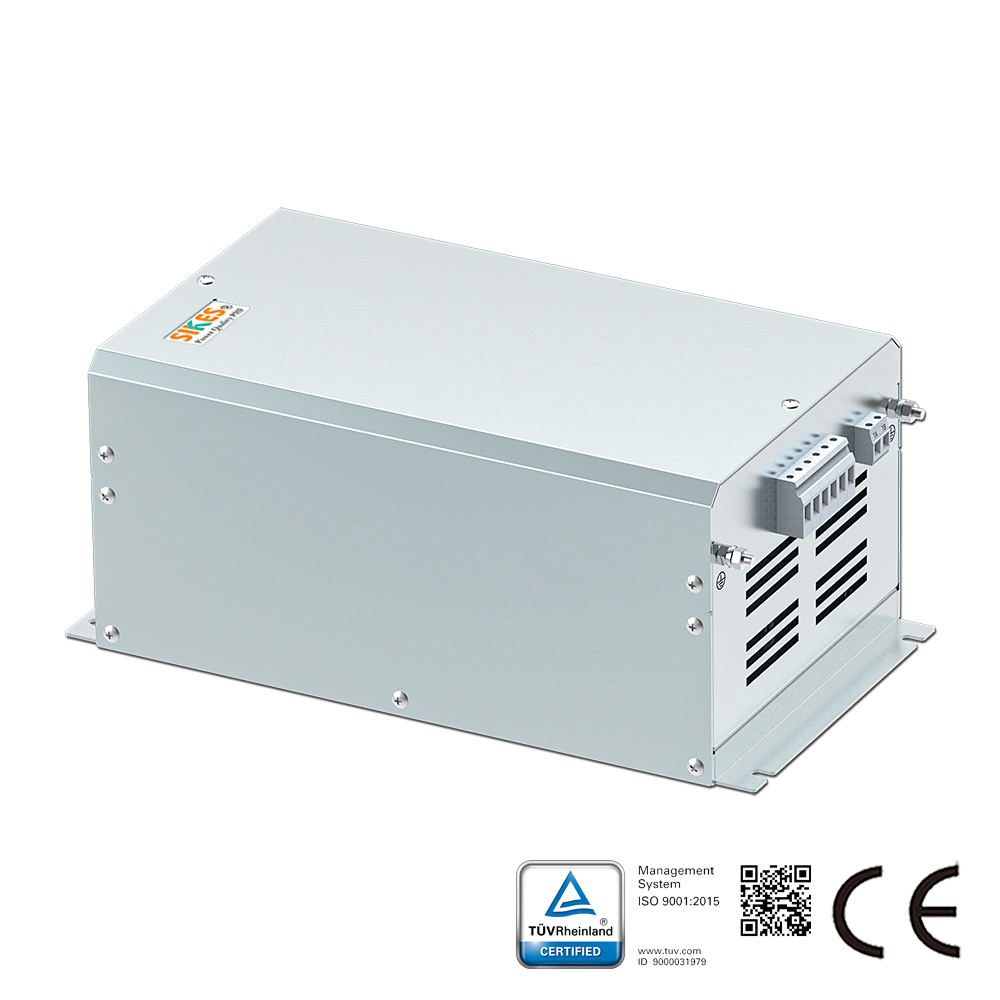

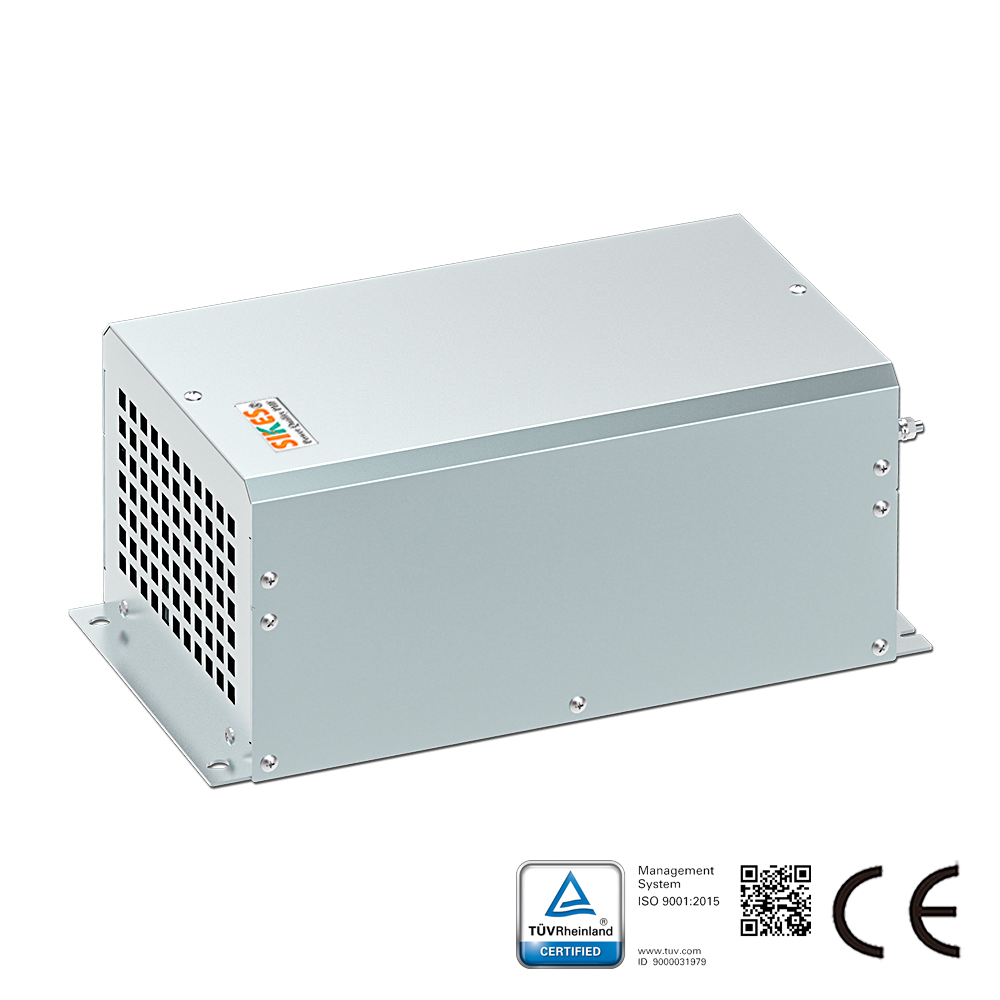

This dedicated harmonic filter for EC fans is specifically optimized based on the low DC-link capacitance characteristics of EC drives. It is designed to eliminate resonance risks from the topology level, achieving stable harmonic mitigation for clusters of multiple EC fans, and meets the high-standard power quality requirements of building services, data centers, medical clean room facilities, rail transit, and other demanding applications.

Product Operating Principle:

The device is installed in series at the front end of the main power supply to the EC fans. It consists of linear filtering reactors, low-distortion filtering capacitors, and other components. It precisely absorbs harmonic currents generated by the EC fans at various frequencies, while simultaneously blocking harmonics from other nonlinear loads on the grid side from penetrating back into the fan drives. Equipped with integrated reactive power compensation, it also optimizes the system power factor, cleans up the incoming current waveform, and reduces harmonic losses in the power distribution system.

Key Technical Specifications：
Harmonic Suppression Performance: Under full-load conditions, input current THDi ≤ 5%, voltage harmonic distortion THDu < 3%, and mitigation efficiency > 85%, meeting the requirements of GB/T 14549-2005 “Power Quality – Harmonics in Public Supply Networks” and IEEE Std 519-2014.
Loss Characteristics: Overall insertion loss ≤ 4.5%. The reactors are made of high-permeability, low-loss silicon steel sheets using a vacuum impregnation process, with a temperature rise limit of ≤ 100K.
Reactive Power Compensation: After commissioning, the system power factor remains stable at ≥ 0.99 (at rated current), eliminating reactive power penalty charges.
Load Adaptability: A single filter can support multiple EC fans simultaneously, allowing independent start/stop, stepped speed control, and intermittent operation of individual fans.
Environmental Adaptability: Rated operating temperature range of –25°C to +45°C, relative humidity 5% to 90% (non-condensing), IP20 indoor protection rating. Suitable for data center server rooms, underground equipment rooms, clean manufacturing facilities, and rail transit ventilation machinery rooms.

Typical Application Scenarios:
Precision air conditioning EC fans in data centers, ventilation units in hospital clean operating rooms, AHU fresh air handling equipment in commercial complexes, subway/tunnel exhaust fan units, cold chain refrigeration and cold storage ventilation systems, laboratory purification exhaust systems, constant temperature and humidity units in industrial facilities, and EC fan cluster systems for cooling towers.

Engineering Application Value:
Extended service life of power distribution systems: Significantly reduces additional heating losses in transformers, switch gear, and cables caused by harmonics, prevents transformer derating, and minimizes risks of cable overheating, aging, and neutral line overload-induced fire hazards.
Stable building automation systems: Eliminates harmonic electromagnetic interference, ensuring precise and reliable operation of DDC controllers, temperature/humidity/pressure differential sensors, and building interlocking systems, while preventing ventilation control logic disruptions.
Prolonged EC fan service life: Suppresses harmonic-induced core losses, vibration, abnormal noise, and frequent drive fault alarms in motors, extending the overall lifespan of EC fan units and reducing operation and maintenance frequency.
Compliant project acceptance: Ensures power quality in specialized projects such as server rooms, hospitals, data centers, and rail transit meets standards on the first attempt, passing inspections by power utilities, mechanical/electrical authorities, and fire safety regulators, while avoiding penalties for harmonic over-limit.
Life cycle cost savings and energy efficiency: Optimizes power factor, reduces distribution losses, lowers long-term electricity costs, eliminates the need for cable upgrades or up-sizing, and reduces upfront investment in distribution system retrofits.
