| 容量(KVA) | 120 |
| 絕緣等級 | H |
| 無載電流(%) | ≤3.1% |
| 工作頻率 | 50Hz |
| 單相/三相 | 三相 |
| 初級電壓(V) | 60/130 |
| 次級電壓(V) | 400 |
| 標準 | 符合EN61558-2-6 |
| 連結組別 | Dy11 |
| 容量(KVA) | 120 |
| 絕緣等級 | H |
| 無載電流(%) | ≤3.1% |
| 工作頻率 | 50Hz |
| 單相/三相 | 三相 |
| 初級電壓(V) | 60/130 |
| 次級電壓(V) | 400 |
| 標準 | 符合EN61558-2-6 |
| 連結組別 | Dy11 |

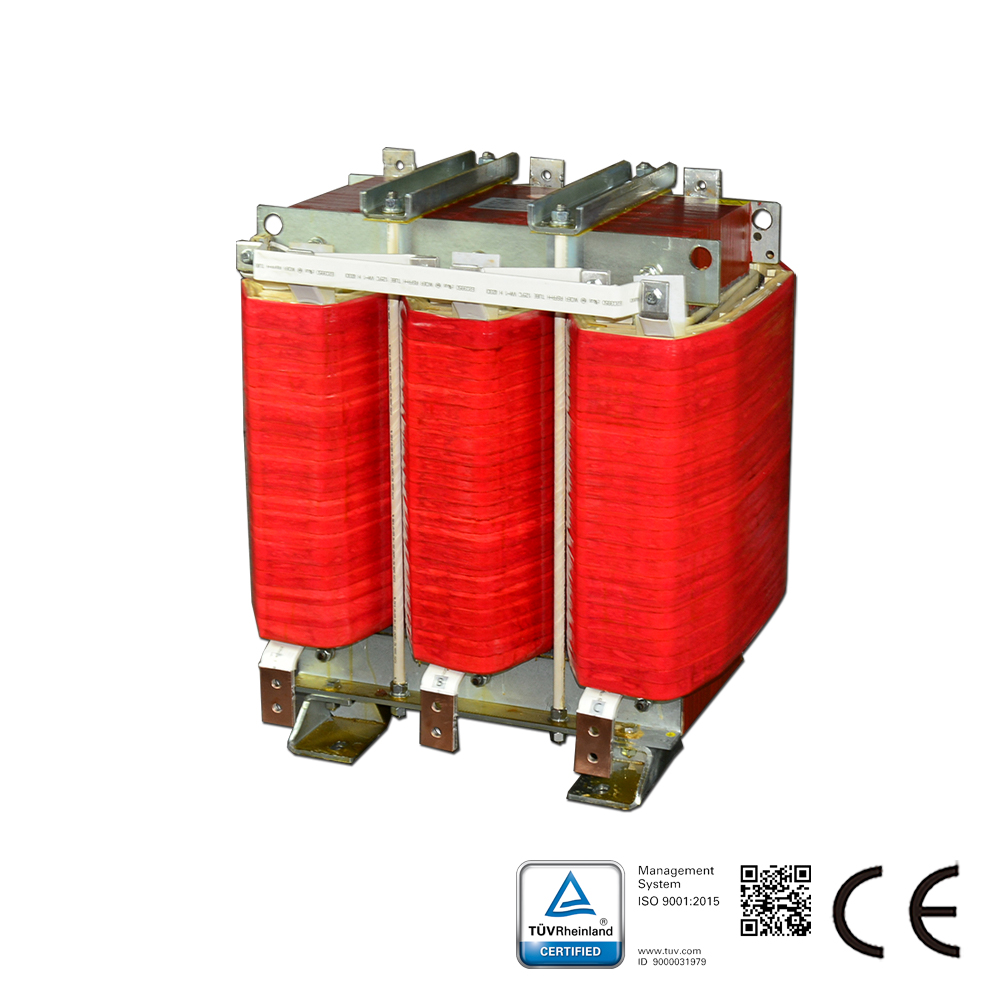

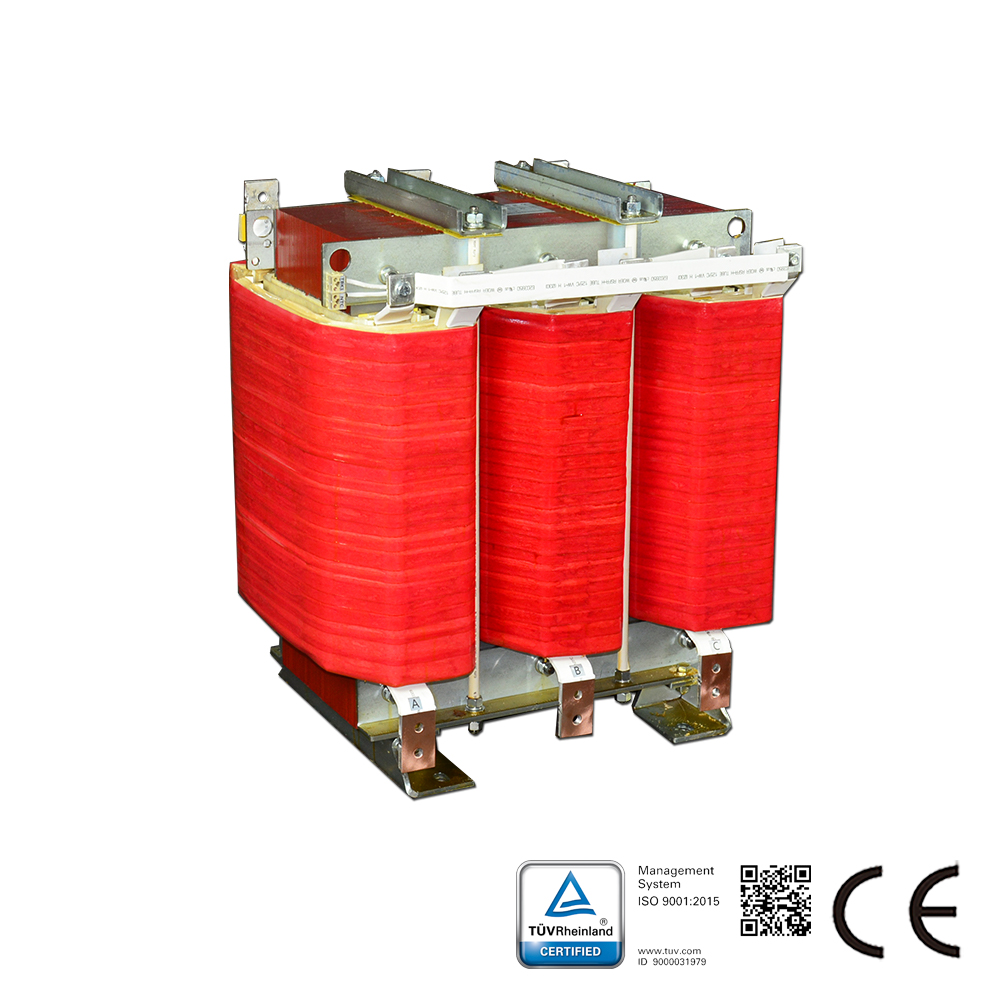

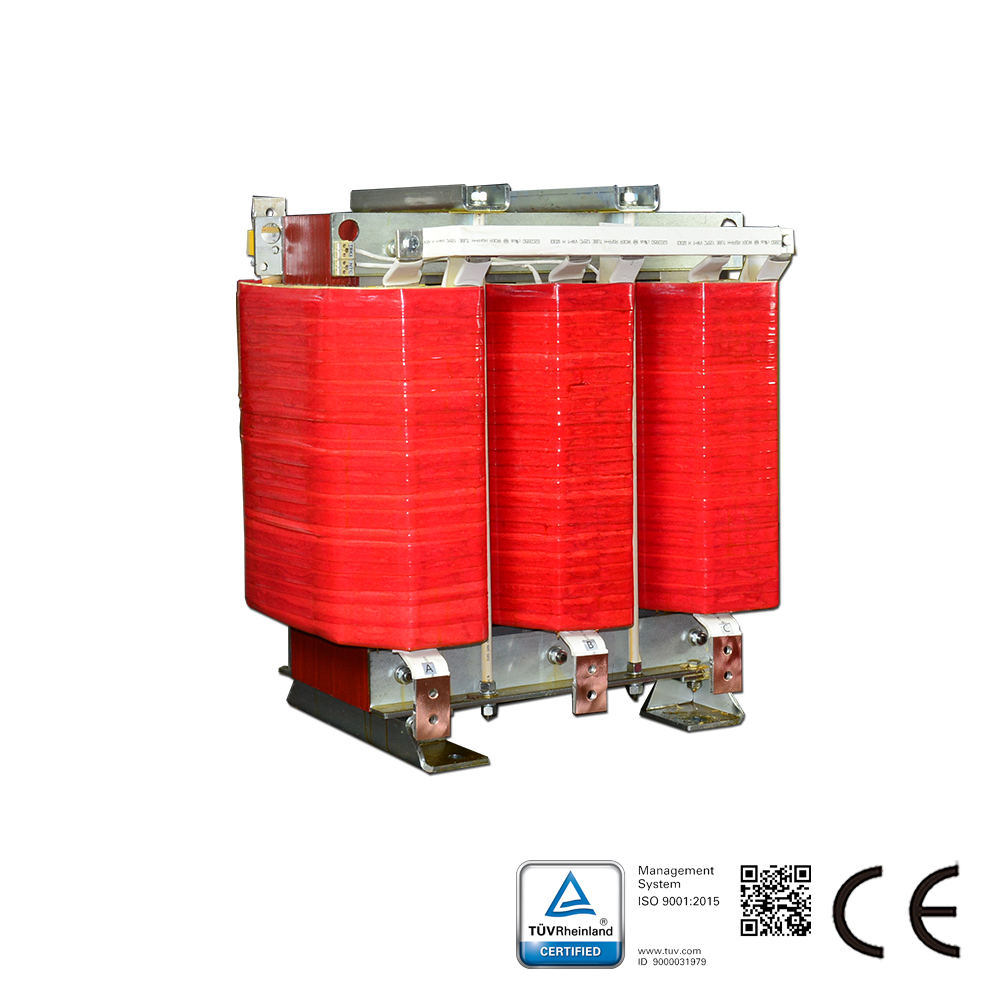

Power isolation transformer refers to the input and output winding with electrical isolation transformers, it can avoid accidental hit at the same time transformer can isolate the former vice edge coil current.
Power isolation transformer are widely used in electronic industry, mining enterprises, machine tools, equipment in general circuit of control power, security lighting and the power of light.
Environment exists without gas, steam, chemical deposition, dust or dirt. Explosive or corrosive medium is not allowed. Outer casing could be desiged as required.
本系列產品特性:
1.功率範圍:30KVA-1000KVA;
2.相數:三相;
3.頻率:400Hz;
4.安裝系統:角鋼 DIN 41307;
5.繞組:F/H級漆包銅線,初級與次級隔離(電氣隔離);
6.防護等級:IP00或依客戶要求;
7.絕緣等級:F/H;
8.標準:依據EN61558-2-6。
