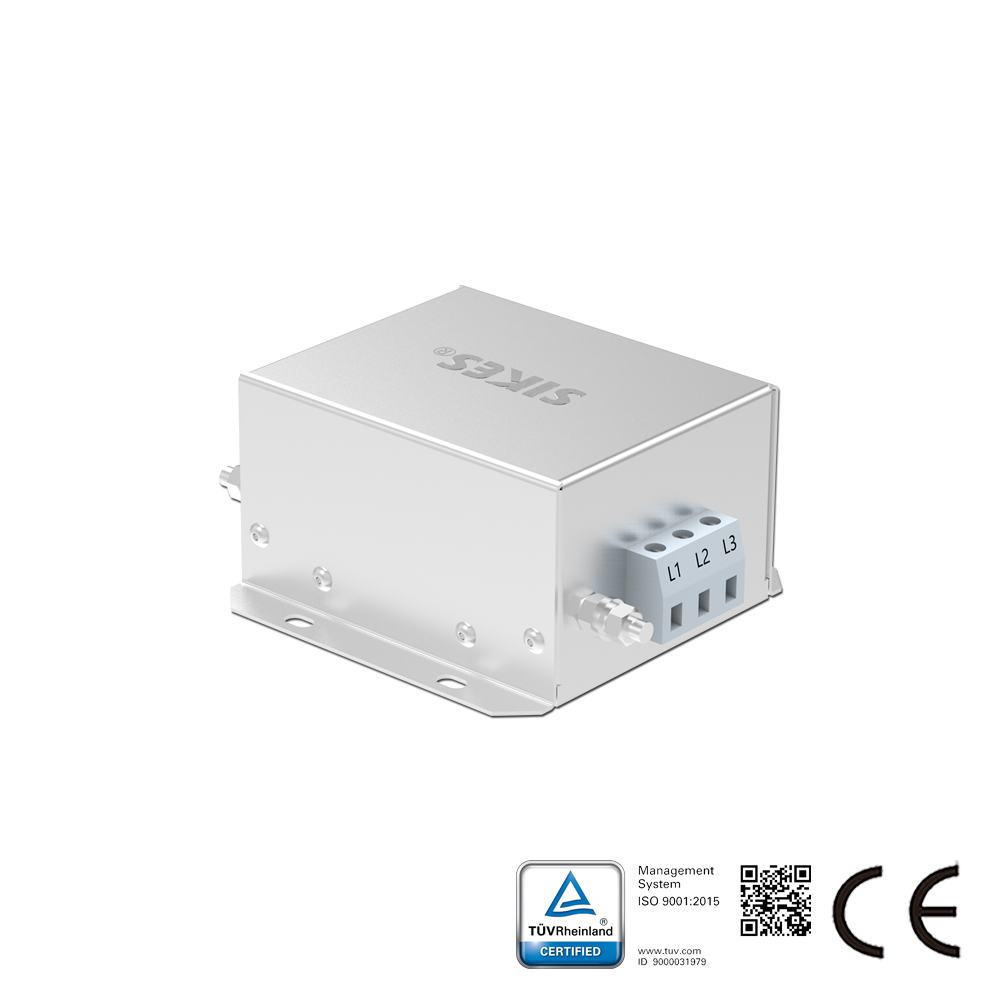

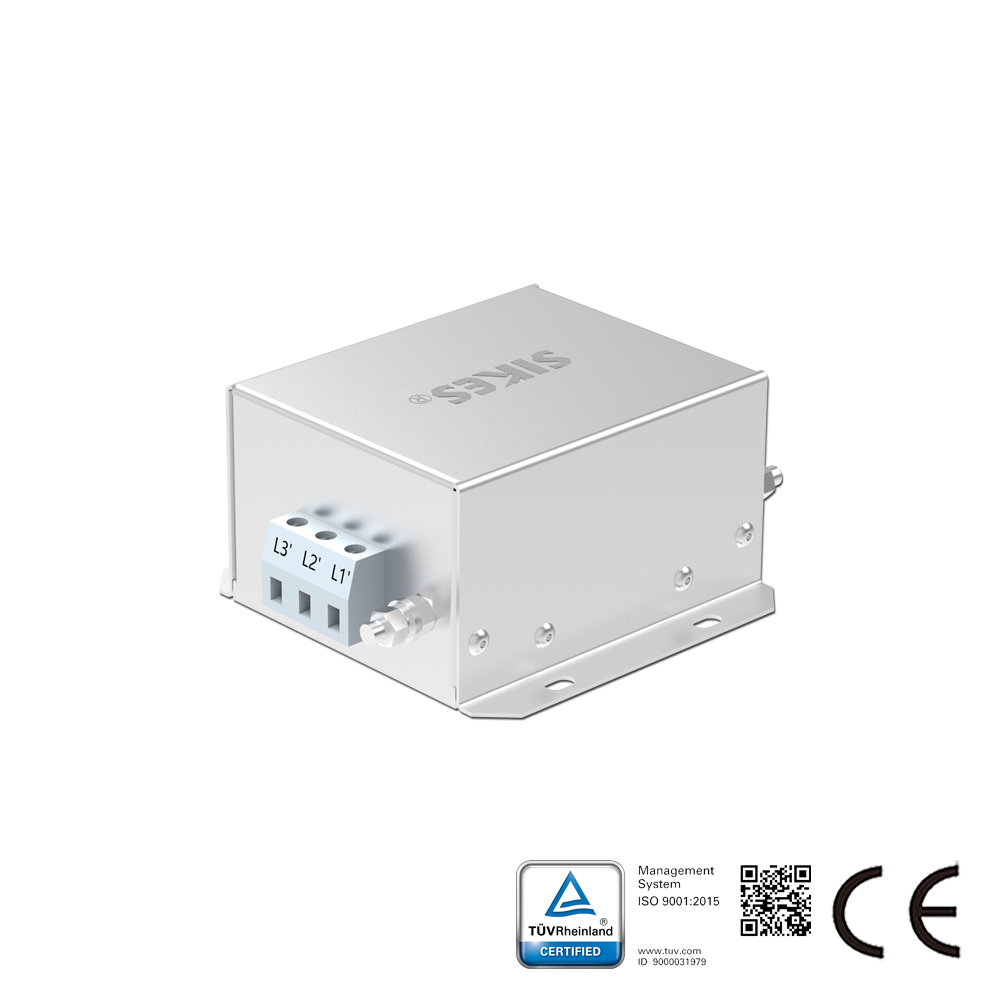

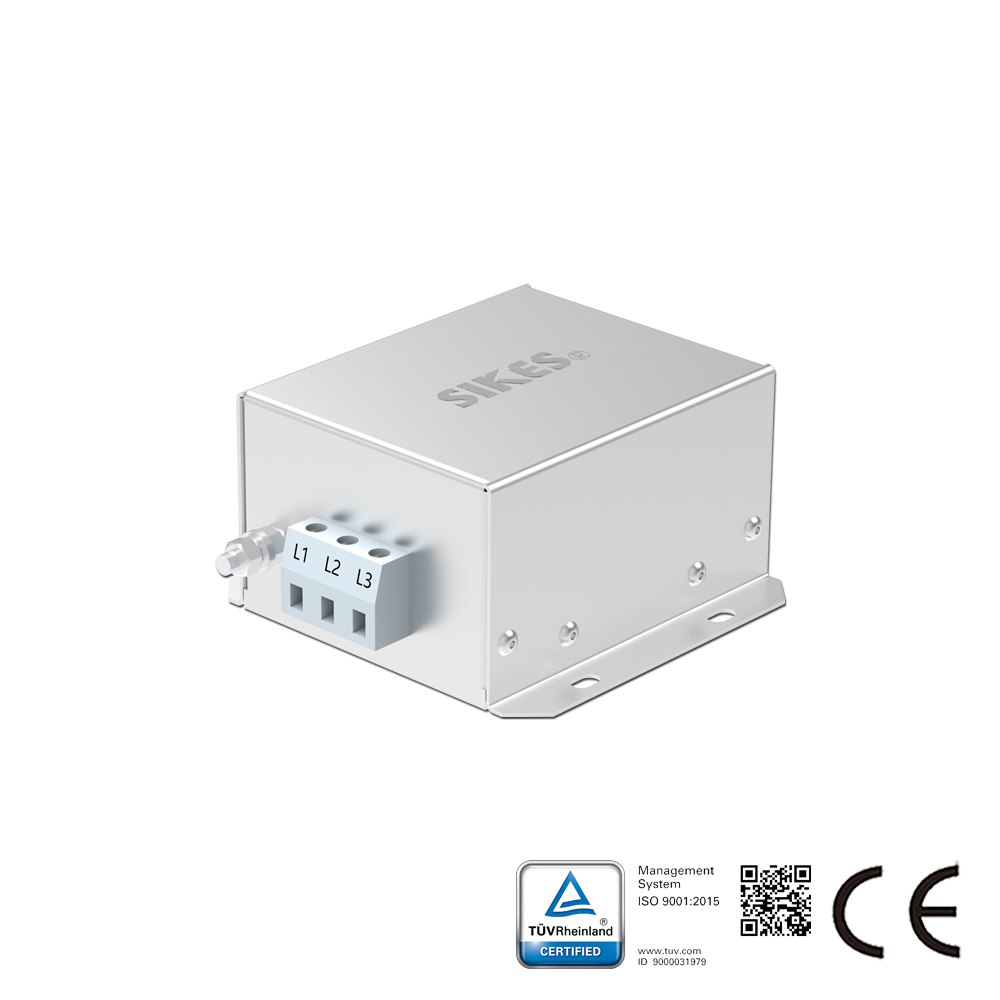

EFO 10A 440V三相輸出濾波器，用於變頻器輸出端

型號：SKS-EFO-0010/4-T

根據變頻、逆變系統輸出端電路特點而設計。應用於設備輸出端，可有效減少電磁干擾對負載的損害，如發熱、嘯叫、浪湧電壓和電流。優異的共模干擾衰減特性。可選電流範圍廣。電壓等級可選。

產品或解決方案諮詢

線上對話

分享：

規格和參數

電源系統	三相
額定電流(A)	10
額定電壓(V)	440
工作頻率(Hz)	50/60

產品詳情

根據變頻、逆變系統輸出端電路特點而設計。
應用於設備輸出端，可有效減少電磁干擾對負載的損害，如發熱、嘯叫、浪湧電壓和電流。
優異的共模干擾衰減特性。
可選電流範圍廣。
電壓等級可選。

功能和特點

額定電壓：440VAC，520VAC，690VAC
額定電流：5-2300A
工作頻率：50/60Hz
連接方式：歐式端子、銅排
工作溫度範圍：-25℃ 至 85℃
執行標準：UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939, GB15287

相關文件

3 Phases 440V-EMC-EMI Output Filter EFO series
