三相濾波器EFI系列-輸入濾波器

三相濾波器, EFI系列, 輸入濾波器, 寬頻帶濾波
首頁›產品中心›EMC/RFI›三相三線濾波器›三相濾波器EFI系列-輸入濾波器›EFI 5A 440V三相輸入濾波器，用於變頻器輸入端

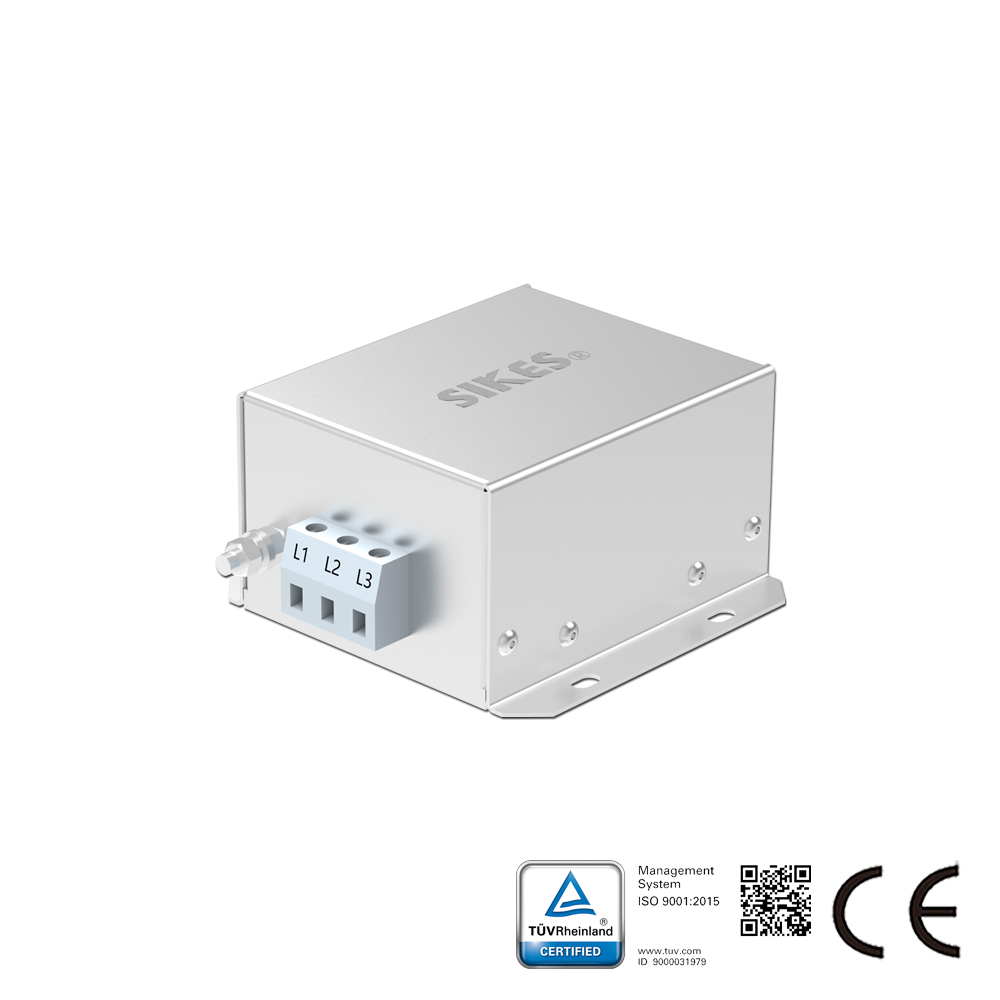

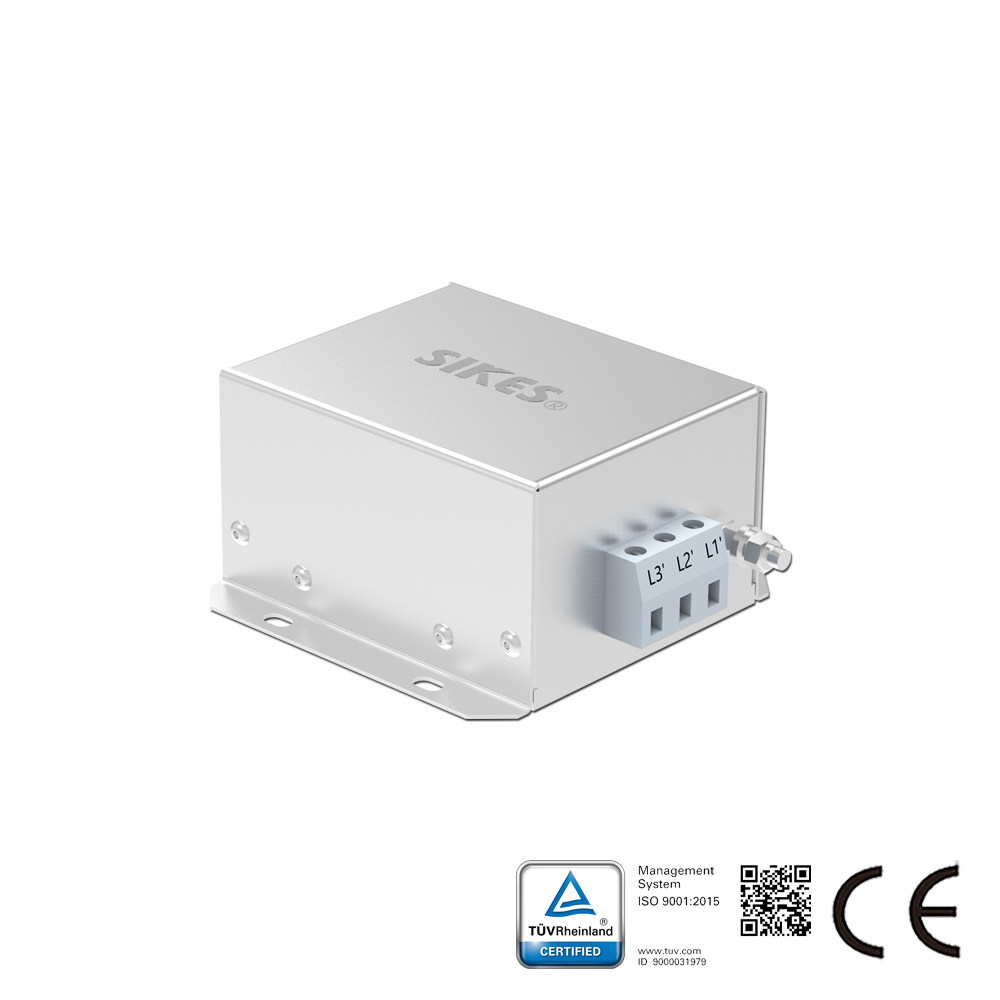

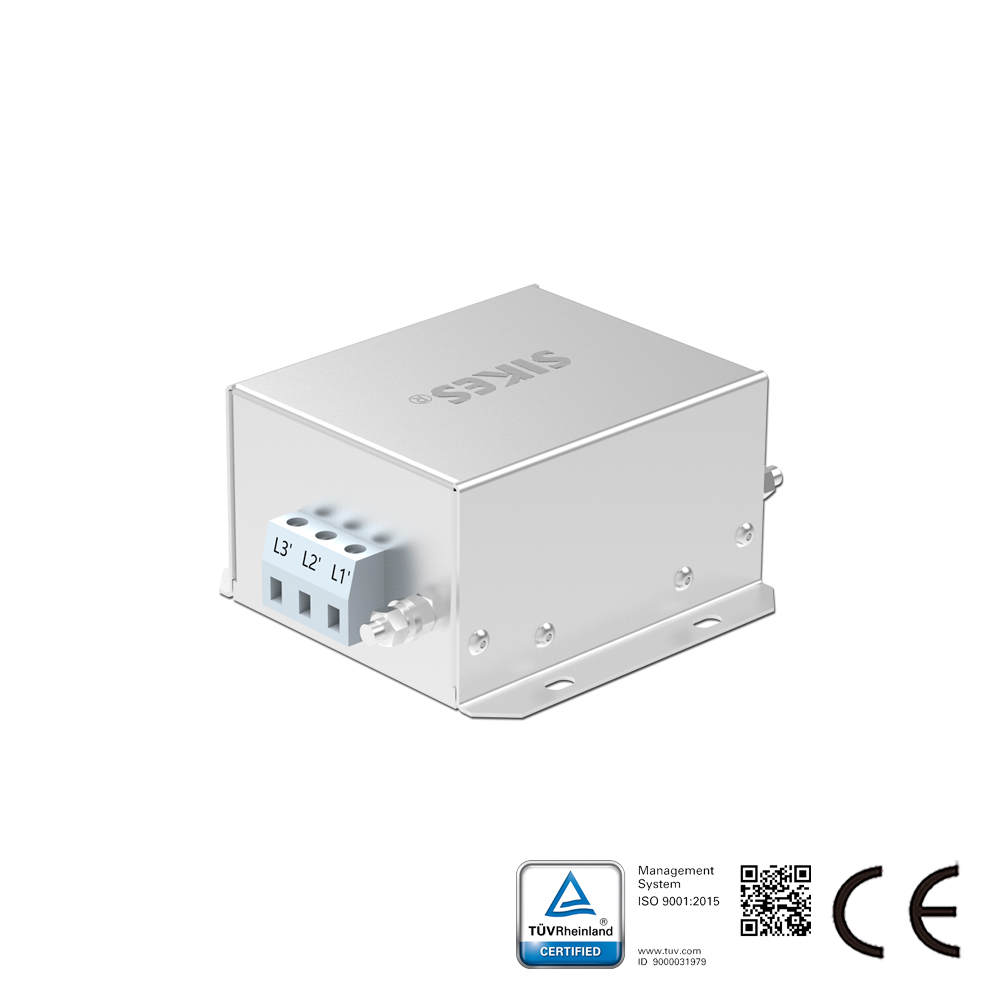

EFI 5A 440V三相輸入濾波器，用於變頻器輸入端

型號：SKS-EFI-0005/4-T
根據變頻器電路產生干擾的特點而設計。 適用於絕大多數變頻、驅動系統。 適用性廣，寬頻帶內濾波性能優異。 可選電流範圍廣。 電壓等級可選。 多種規格可選。
產品或解決方案諮詢 線上對話
分享：

規格和參數

電源系統 三相
額定電流(A) 5
額定電壓(V) 440
工作頻率(Hz) 50/60

產品詳情

  1. 根據變頻器電路產生干擾的特點而設計。
  2. 適用於絕大多數變頻、驅動系統。
  3. 適用性廣，寬頻帶內濾波性能優異。
  4. 可選電流範圍廣。
  5. 電壓等級可選。
  6. 多種規格可選。

功能和特點

額定電壓：440VAC，520VAC，690VAC
額定電流：5-2300A
工作頻率：50/60Hz
連接方式：歐式端子、銅排
工作溫度範圍：-25℃ 至 85℃
執行標準：UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939, GB15287

應用範圍

典型應用場景：
1. 變頻驅動系統輸入端；
2. 工業自動化設備；
3. 半導體設備；
4. 三相電源及充電系統；
5. 倉儲自動化系統；
6. 暖通及空調系統；
7. 低漏電流款可用於醫療系統；
8. 能源開採系統及設備
