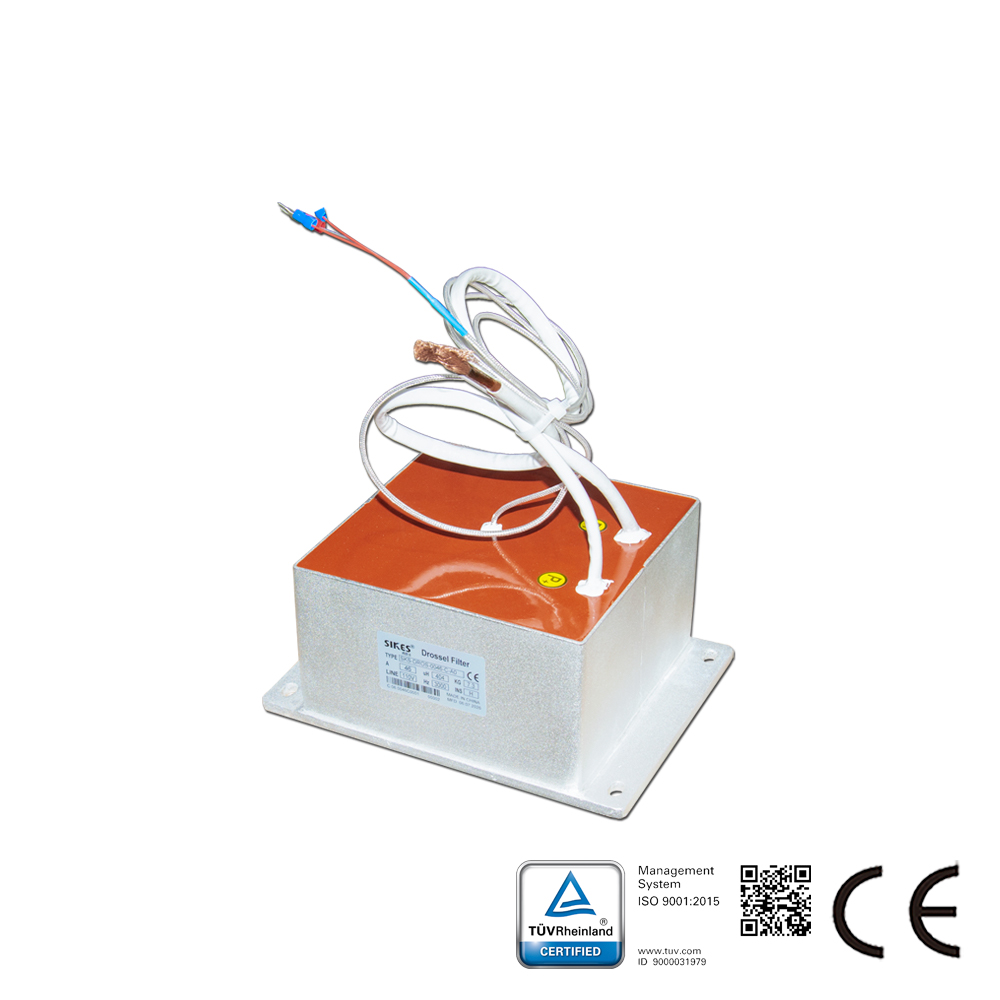

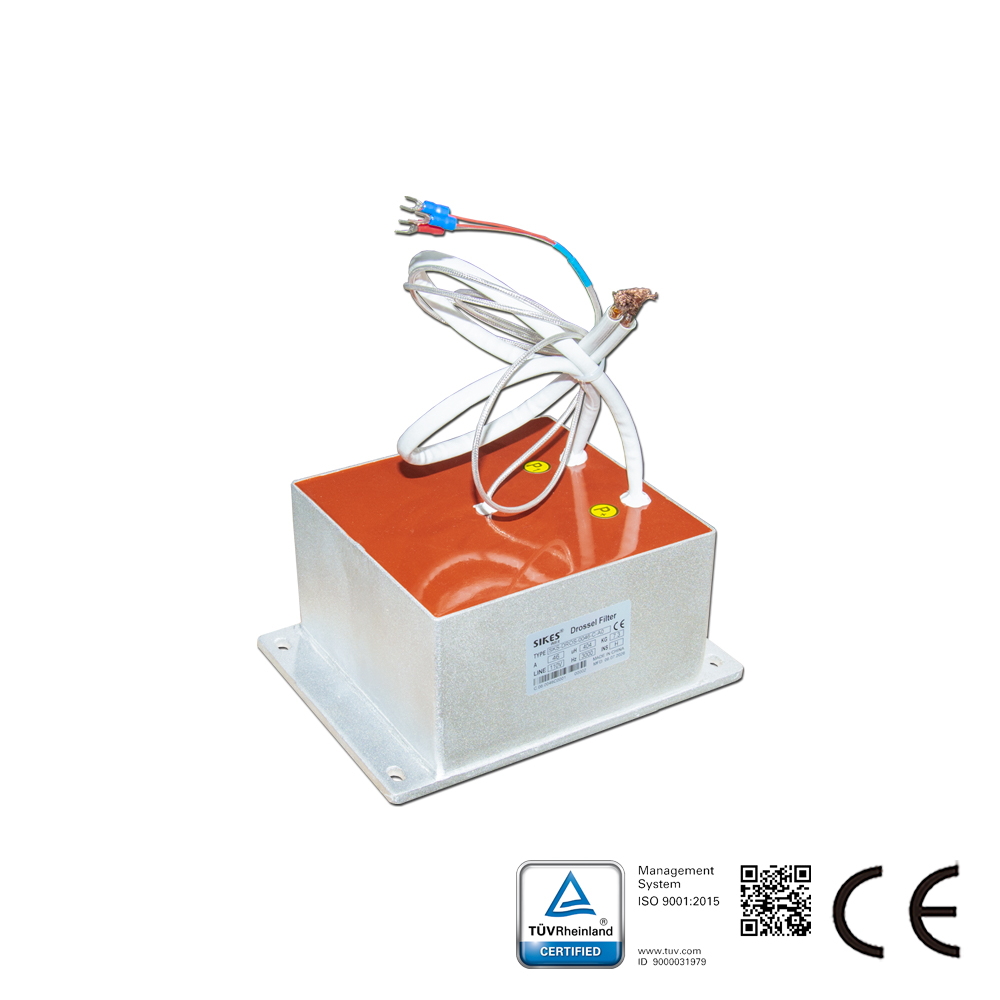

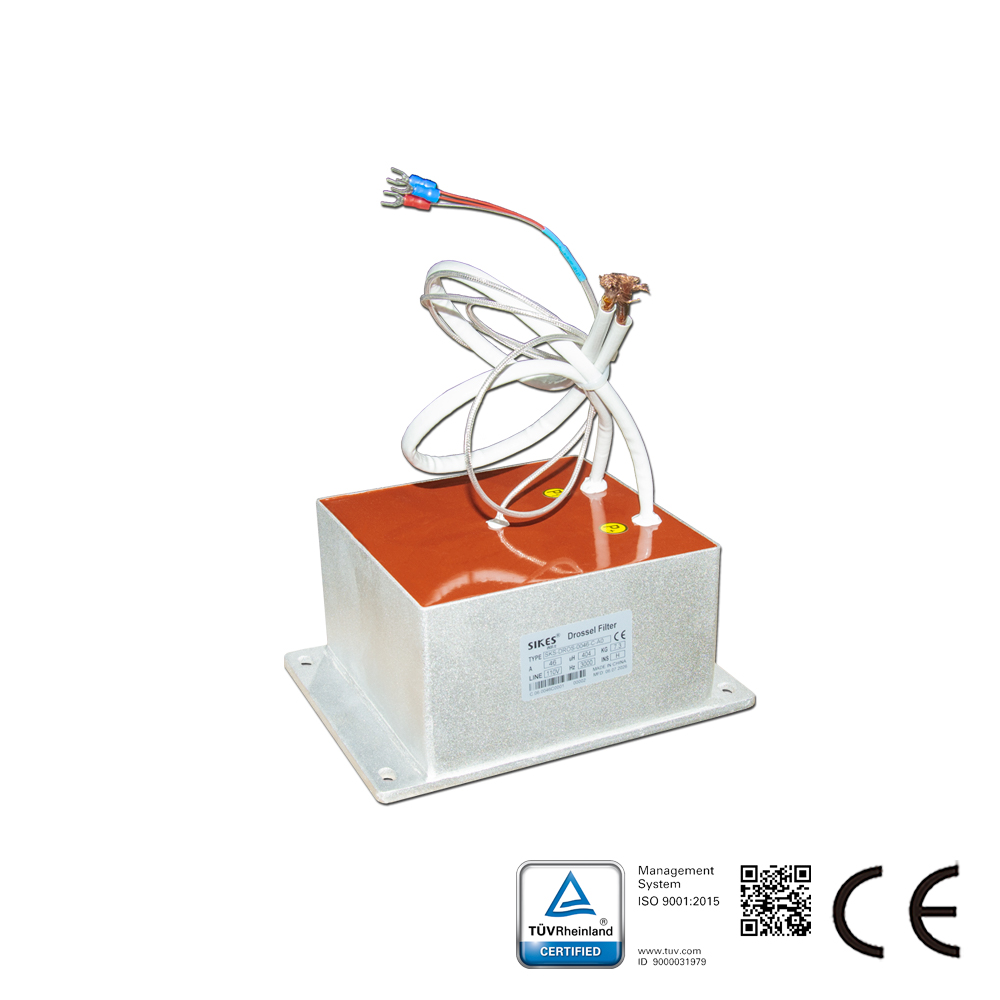

單相高頻直流電抗器 開關頻率3000Hz 46A

型號：SKS-DROS-0046-C-A0
This series chokes are designed for high-frequency inverter circuit and suitable for power supplier system of AC 10-30KHz frequency and below 1KV rated voltage, it is a string of high-frequency circuits in harmonic components which can protect other electrical components safe and reliable operation; also can reduce current ripple, guarantee continuous current, and improve quality of power supply when the inductor reaches a certain amount.
產品或解決方案諮詢 線上對話
分享：

規格和參數

AC/DC AC
單相/三相 單相
系統電壓(V) 110
工作頻率 3000Hz
額定電流(A) 46
電感量(uH) 404

產品詳情

This series chokes are designed for high-frequency inverter circuit and suitable for power supplier system of AC 10-30KHz frequency and below 1KV rated voltage, it is a string of high-frequency circuits in harmonic components which can protect other electrical components safe and reliable operation; also can reduce current ripple, guarantee continuous current, and improve quality of power supply when the inductor reaches a certain amount.

功能和特點

高頻單相濾波電抗器的技術參數：
額定電流：≤1000A；
額定線電壓：﹤1200V；
載波頻率：≥10k；
開關頻率：10-30kHz
抗電強度：繞組-地 3000VAC/50Hz/60s 無飛弧擊穿；
絕緣電阻：繞組-地，穿心絲桿-地 500VDC，
絕緣阻值≥100MΩ
電抗器噪音：小於65dB（與電抗器水平距離1米處測試）
防護等級：IP00；
絕緣等級：F/H級

高頻單相濾波電抗器執行標準：IEC289：1987電抗器；GB10229-88電抗器（IEC289：1987）

高頻單相濾波電抗器使用環境條件：
海拔高度不超過1000米，超過1000米需降額使用；運行環境溫度-25℃~+40℃，相對濕度不超過90%。周圍無有害氣體、無易燃易爆物品、無導電塵埃。

應用範圍

高頻單相濾波電抗器應用場合：高頻直流電源、UPS等。
高頻單相濾波電抗器應用行業：電源系統、新能源。

對我們的產品和解決方案有疑問嗎？

  • +86 13925228810
  • Sikes@sikes-elec.com
產品或解決方案諮詢
您可能喜歡的產品
推薦若干熱銷產品
drossel-filter-dros-series-34a

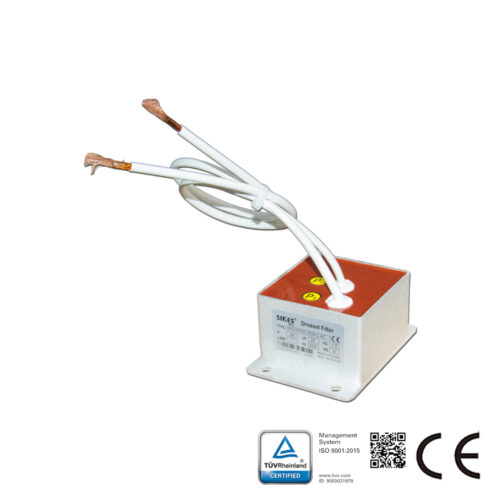

單相高頻直流電抗器 開關頻率3000Hz 34A
