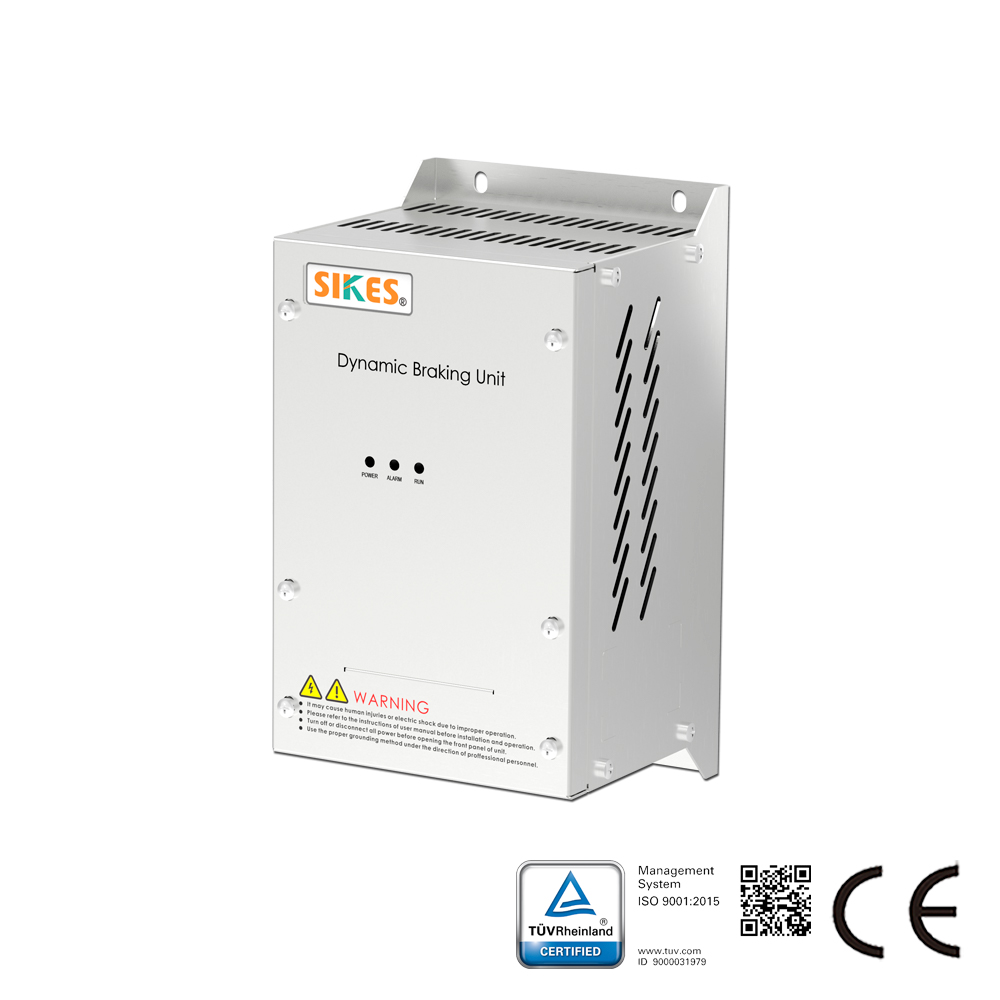

The LN series is to divert the regenerative energy which is produced in the process of decelerating the motor, into a braking unit, converting that energy into heat. Regenerative energy flows from the motor into the inverter DC bus, manifested as increased bus voltage.
Advantages:
Safety:the tripping function against IGBT short circuit breakdown can avoid the fire caused by IGBT breakdown of resistor after overload running.
Wide compatibility:compatible with general resistance rather than non-inductive resistance if it is special design. Adjustable chopper voltage DC 630V-DC760V. Economical feature:high ratio of performance to the rensonable price.Effective and practical for braking circuits of inverter’s

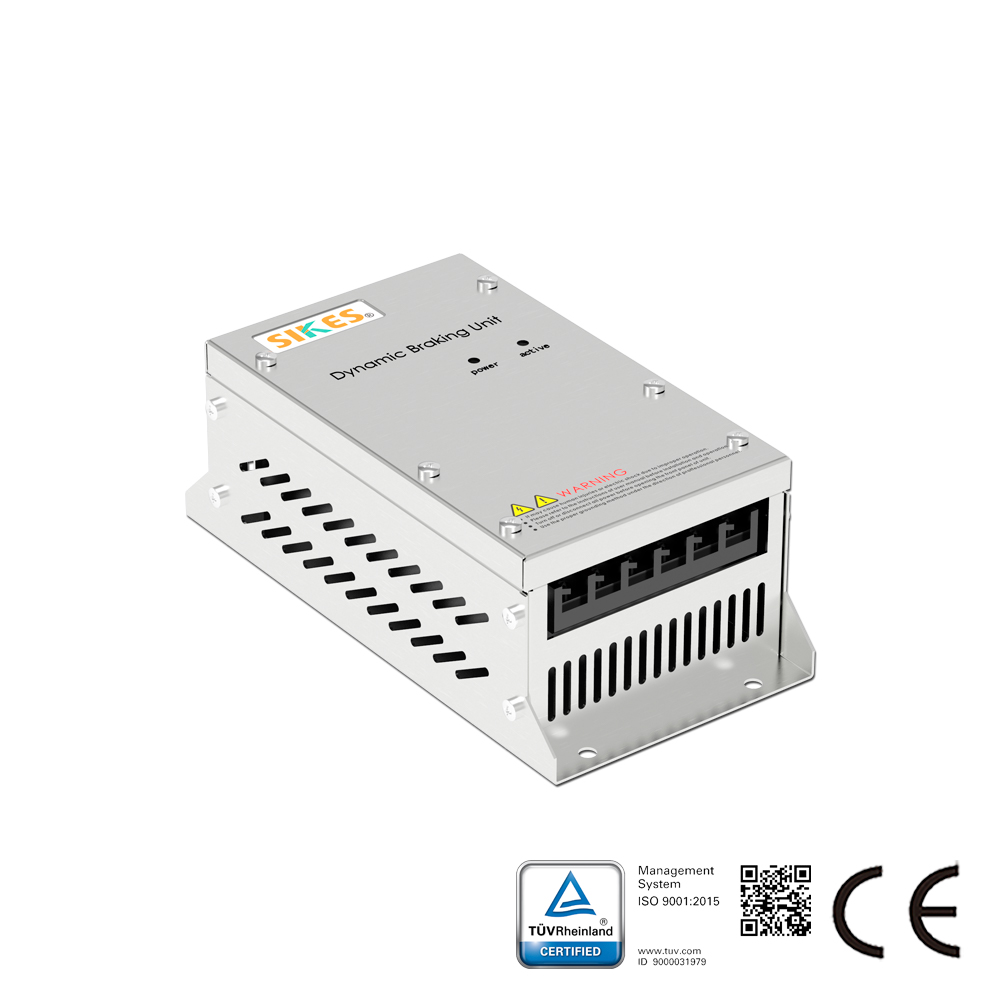

Installation: It adopts a book-shape design and can be installed in parallel connection with zero clearance. It is recommended that up to 3 units can be connected in parallel.
